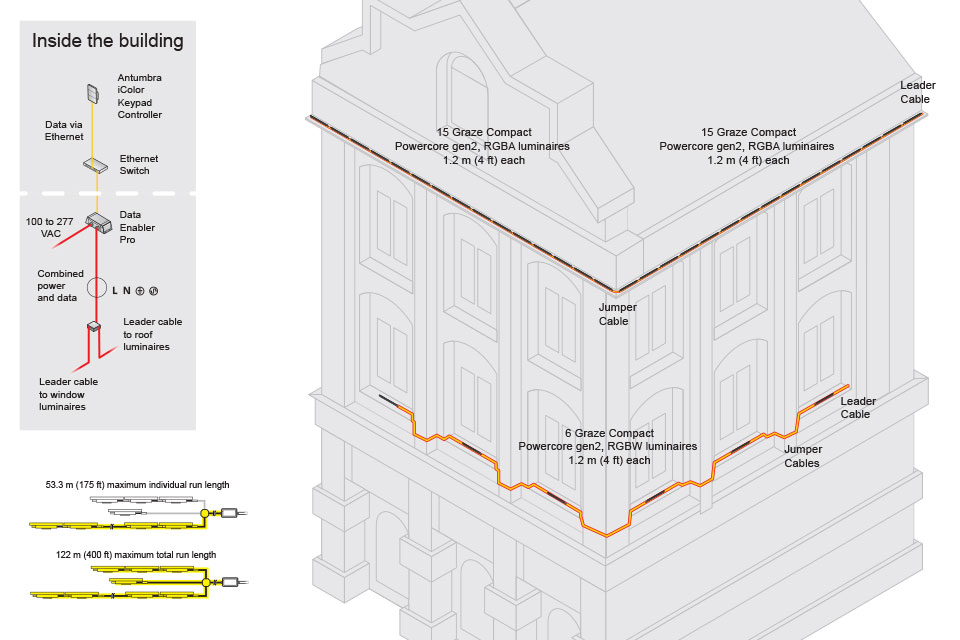

Graze Compact captures the personality of a structure by highlighting its defining details. In this example a line of Graze Compact luminaires at the top of the building are connected end-to-end on an upper ledge illuminate the beautiful cornice and linear roof line. One leader cable and one jumper cable were required for this 160 ft run.
Six Graze Compact, RGBW 10° x 60°, 4ft luminaires light 30 ft up the lower portion of the façade’s windows and architectural details. Connectorized jumper cables speed installation while the small size of Graze Compact and optional masking shield accessories minimize the impact to this historic 100-year-old building.
Data Enabler Pro powers both runs of luminaires with both leader cables wired into a junction box and standard cabling from there to the Data Enabler Pro. No special wiring required.
Control options
Depending on your needs, each of these controllers offer certain advantages
ColorDial Pro–A wall-mounted all-in-one PoE controller with 8 pre-programmed light shows which you can configure. These easy-to-set-up shows include fixed, variable, and random colors, and a variety of wash effects, including custom colors and chasing rainbow.
Antumbra iColor Keypad Controller–A wall-mounted all-in-one PoE controller with customizable fascia, six pushbuttons with onboard effects and configurable shows. Use the configuration software (included) to adjust the effects color, speed, and brightness, then assign the effects to any button for quick and easy playback.
