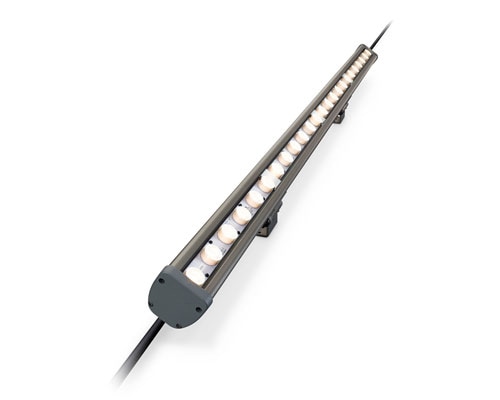

    Vaya Linear MP, White & Mono

    Powerful exterior-rated line-voltage linear LED grazing luminaire for crisp white lighting effects

    Vaya Linear MP is a reliable and cost-effective LED wall grazing luminaire for both interior and exterior use that minimizes initial investment, while offering exceptional flexibility to create eye-catching wall washing and wall grazing effects. A wide range of color and CCT options, in either static on/off or with dynamic color control, adjustable mounting brackets, wide or elliptical beam angles offer a comprehensive toolbox for your facade lighting needs.The discreet design with integrated power supply and waterproof connectors makes wiring simple, fast and reliable.

    Product Summary and Specification Sheets

    Features

    • Powerful - Throwing light with 10lx up to 39 m / 1fc up to 128 ft (elliptical beam), the Linear MP is ideal for grazing of mid-sized walls and facades.
    •

    • Versatile - Available in two different lengths and available in wide or elliptical beam angles, a selection of four color temperatures from warm 2700 K to cool 5000 K, various mono colors and adjustable mounting brackets make the Vaya Linear series a versatile tool box for a host of interior and exterior linear lighting applications.
    •

    • Easy to Install - Snap-lock connectors ensure fast and secure waterproof daisy-chain connections
    •

    • Technologies Used
      High-brightness White or Mono Color LEDs
    •

    • Environment
      IP66, Wet location listed, IK06
    •

    • Finish/Color
      Extruded aluminum, anodized finish RAL7043
    •

    • Simple - Directly processes 100 to 277 VAC input, all in one slim housing, eliminating the need for bulky external low voltage power supplies and related cabling limitations, allowing for greater installation flexibility and a lean installation.
      Optional On-Off or DMX-512 control allows for dimming and dynamic control with industry standard protocols, allowing for easy setup and 3rd party system integration.
    •

    • Robust - An anodized aluminium housing, tempered glass, pressure equalizing air vents and IP66 outdoor rating protect this product against harsh outdoor environments, while waterproof connectors ensure a reliable and fast installation.
    •

    • Custom Configurations - A host of configured options is available from the Ordering Guide
    •

    • Lens
      Tempered Glass
    •

    • Voltage
      100V – 277 VAC, 50 / 60Hz
    •

    • Regulatory Listings
      UL / cUL, FCC Class A, CE, CB
    •
