    iW Cove MX Powercore

    Premium interior linear cove and accent luminaire with tunable white light

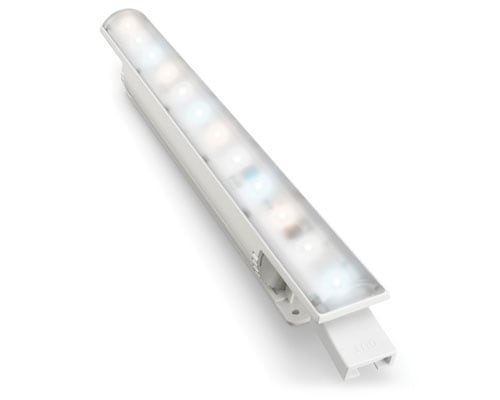

    iW Cove MX Powercore is a high-performance, white-light LED luminaire that brilliantly illuminates alcoves and other interior spaces wherever adjustable color temperature is required. With three channels of warm, neutral, and cool LED sources, this compact, versatile luminaire offers a color temperature range of 2700 K to 6500 K. With its rotating housing, flexible end-to-end locking power connectors, and wide and medium beam angles, iW Cove MX Powercore is the perfect choice for retail, exhibit, hospitality, and architectural applications.

    Product Summary and Specification Sheets

    A summary of all products

    Features

    • Superior beam quality
      Available in 305 mm (1 ft) and 1219 mm (4 ft) die-cast aluminium housings with wide 110° x 110° and medium 50° x 70° beam angles. Delivers striation-free light within close distance from luminaire placement with no visible light scalloping between luminaires.
    •

    • Superior binning algorithm sets new standard for color consistency
      iW Cove MX Powercore exceeds the recognized standards for color quality to guarantee uniformity and consistency of hue and color temperature across LEDs, luminaires, and manufacturing runs.
    •

    • Universal power input range
      Power input of 100 to 240 VAC for consistent installation anywhere in the world.
    •

    • Flexible mounting and positioning
      With end-to-end locking power connectors that can make 180° turns, these compact cove luminaires are easy to position in even the most challenging mounting circumstances. 305 mm (1 ft) and 1.5 m (5 ft) jumper cables can add extra space between luminaires. Optional mounting tracks support vertical and overhead positioning.
    •

    • High-performance illumination in a wide range of color temperatures
      Channels of warm, neutral, and cool white LEDs produce color temperatures ranging from 2700 K to 6500 K. Offers the greatest possible light intensity at all color temperatures. Luminaire brightness can be varied while maintaining constant color temperature.
    •

    • Integrates Powercore technology
      Powercore technology rapidly, efficiently, and accurately controls power output to luminaires directly from line voltage. The Color Kinetics Data Enabler Pro merges line voltage with control and delivers them to the luminaire over a single standard cable, dramatically simplifying installation and lowering total system cost.
    •

    • Easy installation
      By delivering line voltage directly to the luminaires, Powercore simplifies installation by reducing the number of external power supplies, allowing long product runs and eliminating the need of special wiring. Easy-to-install 1.2 m (4 ft) mounting tracks allow quick project setup in linear applications.
    •

    Downloads

    Documentation
    IES Files
    iW Cove MX Powercore, 305 mm (1 ft), 110° x 110°
    iW Cove MX Powercore, 305 mm (1 ft), 50° x 70°
    iW Cove MX Powercore, 1.2 m (4 ft), 110° x 110°
    iW Cove MX Powercore, 1.2 m (4 ft), 50° x 70°
    Revit Files
