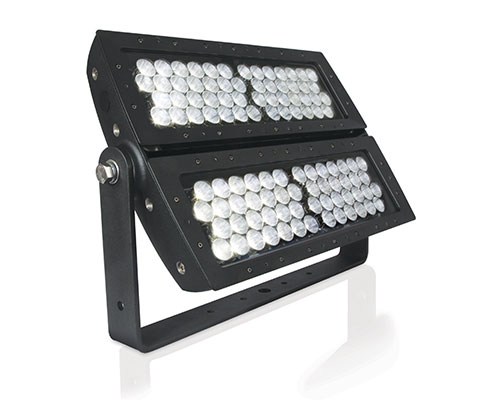

    eW Reach Powercore gen2

    Exterior long-throw floodlight with single temperature white light

    eW Reach Powercore gen2 high-performance LED luminaires are premium exterior long-throw dynamic high-quality white luminaires for lighting tall buildings, bridges, and iconic structures. eW Reach Powercore gen2 outputs washes of white light in color temperatures ranging from a warm 2700 K to a cool 6500 K. A full range of accessories allow for customizable beam angles for floodlighting, spotlighting, wall washing, and grazing, along with the efficiency and cost-effectiveness of Powercore technology in a rugged die-cast aluminium housing.

    Lighting Facts

    Product Summary and Specification Sheets

    A summary of all products

    Features

    • Multiple options for design flexibility
      Luminaires are available in a warm 2700 K or a cool 4000 K. Custom configurations with custom channels of white or color LED sources are also available to support special applications.
    •

    • Digital Dmming
      Smooth dimming down to 1% with optional Data Enabler Pro and digital control interface. More about dimming »
    •

    • Expanded customization with a wide range of new accessory options. To complement the native 5° lens, six standard secondary spread lenses can customize the luminaire to produce 8°, 13°, 23°, 43°, 63°, and 5° x 17° (asymmetric) beam angles. The option to add or combine a louver, full glare shield, or half glare shield creates new aesthetic possibilities for designers and architects.
    •

    • Simple luminaire positioning
      Rugged, slim-profile mounting bracket allows simple positioning and luminaire rotation through a full 360°. Side locking bolts reliably secure luminaire with a standard wrench.
    •

    • Superior color consistency and accuracy
      Optibin, an advanced binning algorithm, sets a new standard for the color consistency and uniformity of LED sources used in manufacturing resulting in color consistency within 2 SDCM.
    •

    • Unparalleled light output
      eW Reach Powercore gen2 offers unprecedented output and punch for LED-based illumination of large-scale structures and objects.
    •

    • Integrates patented Powercore technology that controls power output to luminaires directly from line voltage – rapidly, efficiently, and accurately. The Color Kinetics Data Enabler Pro merges line voltage with control data and delivers them to luminaires over a single standard cable, dramatically simplifying installation and lowering total system cost.
    •

    • Universal power input range of 100 to 277 VAC.
    •

    Downloads

    Documentation
    IES Files
    eW Reach Powercore gen2, 2700 K
    eW Reach Powercore gen2, 4000 K
    Revit Files
    Product Drawings
