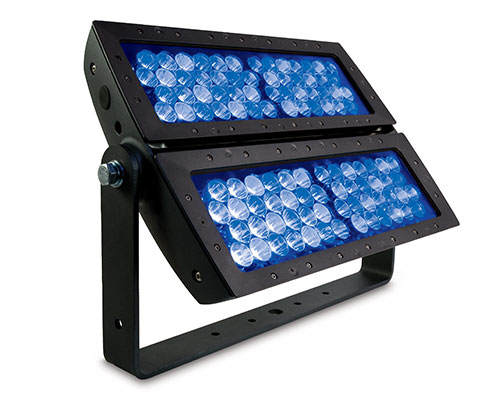

eColor Reach Powercore gen2

Premium long-throw exterior LED floodlight with solid color light

eColor Reach Powercore gen2 high-performance LED luminaires are premium exterior long-throw dynamic high-quality solid color luminaires for lighting tall buildings, bridges, and iconic structures. A full range of accessories allow for customizable beam angles for floodlighting, spotlighting, wall washing, and grazing, along with the efficiency and cost-effectiveness of Powercore technology in a rugged die-cast aluminium housing.

CK product guides for Luminaires

Toggle view

Product Summary and Specification Sheets

Download Product Summary

A summary of all products

Features

Superior color consistency and accuracy
Optibin, an advanced binning algorithm, sets a new standard for the color consistency and uniformity of LED sources used in manufacturing.

Expanded customization with a wide range of new accessory options. To complement the native 5° lens, six standard secondary spread lenses can customize the luminaire to produce 8°, 13°, 23°, 43°, 63°, and 5° x 17° (asymmetric) beam angles. The option to add or combine a louver, full glare shield, or half glare shield creates new aesthetic possibilities for designers and architects.

Integrates patented Powercore technology that controls power output to luminaires directly from line voltage
rapidly, efficiently, and accurately. The Color Kinetics Data Enabler Pro merges line voltage with control data and delivers them to luminaires over a single standard cable, dramatically simplifying installation and lowering total system cost.

Universal power input range of 100 to 277 VAC.

Dimming control via DMX
Dim luminaires smoothly and accurately from 1% to 100% with Color Kinetics lighting controllers, including iPlayer 3 and third-party controllers (optional Data Enabler Pro and 4-conductor cable required).

Unparalleled light output
eColor Reach Powercore gen2 offers unprecedented output and punch for LED-based illumination of large-scale structures and objects.

Simple luminaire positioning
Rugged, slim-profile mounting bracket allows simple positioning and luminaire rotation through a full 360°. Side locking bolts reliably secure luminaire with a standard wrench.
