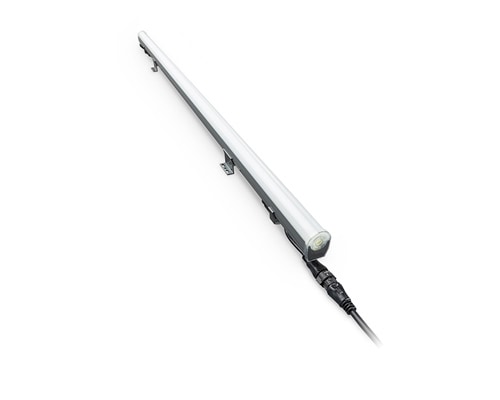

Vaya Tube, White

Exterior compact linear direct view luminaire with crisp white accent lighting

Vaya Tube is a compact direct view linear LED lighting solution for exterior accent and low-resolution graphic lighting applications. From static contour lighting to media graphics with a resolution up to 150 mm, the DMX and KiNet-controllable system can transform entire facades with bright and uniform light in White. The light-weight luminaire minimizes the loading onto structures and cladding elements, while run-lengths of up to 12 m (40 ft) per Control Module port (x2) allow for flexible wiring. Simple push'n'click connectors ensure a simple, fast and reliable installation.

Product Family Guide

• Toggle view

Product Summary and Specification Sheets

Features

• Slim & Light-Weight - The slim form factor, different length options and light-weight of the luminaire ease the integration into façade cladding elements and minimize excess loading onto architectural structures.



• Contour & Content - Whether outlining the contour of a building, placing accents onto a façade or creating a media display of dynamic graphics, Vaya Tube places a variety of control options at your fingertips from static on/off setups to dynamic control in resolutions ranging from entire runs down to 150 mm (6 in) segments.



• Technologies Used
  Solid White



• Environment
  IP66, Wet location listed, IK07



• Finish/Color
  UV-stabilized polycarbonate, dark grey finish (RAL7043)



• Uniform & Bright - Create a uniform band of light in a wide 180 degree viewing angle, while ensuring high visibility



• Simple Wiring & Long Runlengths - With up to 12 m (40 ft) per Control Module port (x2), Vaya Tube offers flexibility in wiring and minimizes the number of required protrusions to the interior of the building. In static on-off applications, 14.4m (48 ft) of luminaires can be daisy-chained on a single power supply. Waterproof daisychain-connectors, combining low voltage power and data, make for simple, fast and reliable wiring connections.



• Lens
  Translucent Cover Lens



• Voltage
  24V DC



• Regulatory Listings
  UL/cUL, FCC Class A, CE, CB, CQC, SAA, C-Tick
