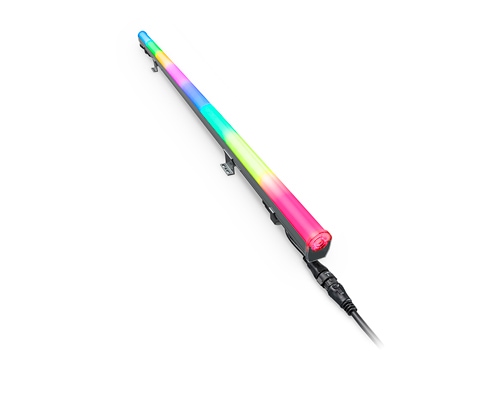

Vaya Tube, RGB

    Exterior compact linear direct view luminaire with dynamic color-changing lighting effects

    Vaya Tube is a compact direct view linear LED lighting solution for exterior low-resolution graphic lighting applications. Designed for media graphics with a resolution up to 150 mm, the DMX and KiNet-controllable system can transform entire facades with bright and uniform light, in either RGB or White/Mono color. The light-weight luminaire minimizes the loading onto structures and cladding elements, while run-lengths of up to 12 m (40 ft) per Control Module port (x2) allow for flexible wiring. Simple push'n'click connectors ensure a simple, fast and reliable installation.

    Product Summary and Specification Sheets


    • Slim & Light-Weight - The slim form factor, different length options and light-weight of the luminaire ease the integration into façade cladding elements and minimize excess loading onto architectural structures.

    • Content - When creating a media display of dynamic graphics, Vaya Tube places a variety of control options at your fingertips from static on/off setups to dynamic control in resolutions ranging from entire runs down to 150 mm (6 in) segments.

    • Technologies Used
      RGB, 3-in-1 SMD

    • Environment
      IP66, Wet location listed, IK07

    • Finish/Color
      UV-stabilized polycarbonate, dark grey finish (RAL7043)
    • Uniform & Bright
      Create a uniform band of light in a wide 180 degree viewing angle, while ensuring high visibility with an output of 355 lm / 77 cd per 1.2 m (4 ft)

    • Simple Wiring & Long Runlengths - With up to 12 m (40 ft) per Control Module port (x2), Vaya Tube offers flexibility in wiring and minimizes the number of required protrusions to the interior of the building. Waterproof daisychain-connectors, combining low voltage power and data, make for simple, fast and reliable wiring connections.

    • Lens
      Translucent Cover Lens

    • Voltage
      24V DC

    • Regulatory Listings
      UL/cUL, FCC Class A, CE, CB, CQC, SAA, C-Tick
