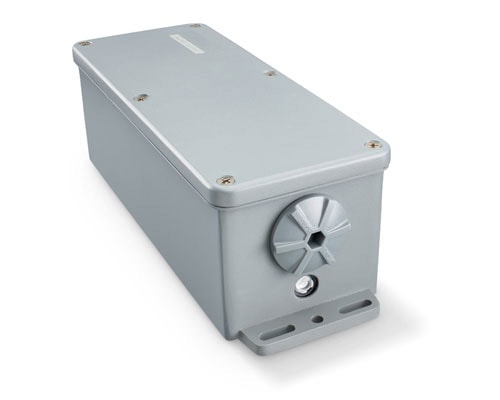

Data Filter IntelliPower



IntelliPower employs an innovative implementation of proven power line carrier technology to send high-bandwidth control data to fixtures over standard 2 + ground wiring, enabling the integration of intelligent LED lighting solutions into existing power systems. By leveraging existing electrical and physical infrastructures, IntelliPower technology lets you affordably install dynamic, digitally controllable LED lighting where it was never possible before.

There are two types of Data Filters, upstream and downstream.

The downstream data filter is positioned on the input data and power stream between the Data Receiver IntelliPower devices and the end fixtures to eliminate noise and deliver clear control data to intelligent luminaires.

The upstream data filter is positioned on the input power stream between the electrical source and Data Enabler IntelliPower devices to eliminate noise and interference from neighboring networks and other sources.

Product Specification Sheets

Features

  • Flexible configurations
    You can install IntelliPower devices in virtually any configuration to support the full range of lighting design needs. You can use multiple IntelliPower devices on a branch to connect individual LED lighting fixtures in situations where you cannot lay new cable. You can send the same data stream to multiple Data Enabler IntelliPower devices to control fixtures on multiple branches from a single control source.
  •

  • Outdoor rated
    Data Filters IntelliPower are fully sealed and IP66-rated for outdoor applications.
  •

  • Regulatory Listings
    UL/cUL, CE, FCC Class A
  • Universal power input range
    IntelliPower devices accept a universal power input range of 100 – 277 VAC for consistent installation and usage anywhere in the world.
  •

  • Environment
    Dry/Damp/Wet Location, IP66

  • Eliminates noise from IntelliPower networks between the Data Receivers IntelliPower and Color Kinetics luminaires.
  •
