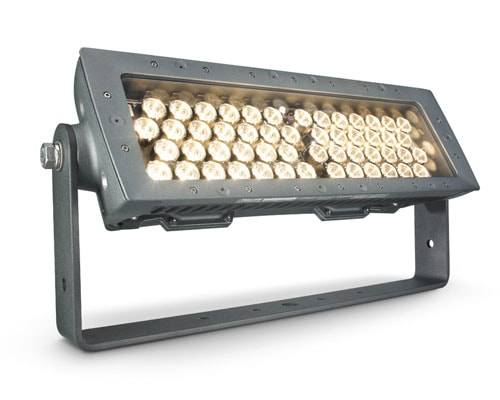

eW Reach Compact Powercore

Exterior long-throw compact floodlight with single temperature white light

eW Reach Compact Powercore high-performance LED luminaires are premium exterior long-throw dynamic high-quality white luminaires for lighting tall buildings, bridges, and iconic structures. eW Reach Compact Powercore outputs washes of white light in color temperatures ranging from a warm 2700 K to a cool 4000 K. A full range of accessories allow for customizable beam angles for floodlighting, spotlighting, wall washing, and grazing, along with the efficiency and cost-effectiveness of Powercore technology in a rugged die-cast aluminium housing.

Product Family Guide

More downloads

• Toggle view

Product Summary and Specification Sheets

Features

• Multiple options for design flexibility
  Luminaires are available in a warm 2700 K or a cool 4000 K. Custom configurations with custom channels of white or color LED sources are also available to support special applications.



• Digital Dimming
  Smooth dimming down to 1% with optional Data Enabler Pro and digital control interface. More about dimming »



• Expanded customization with a wide range of new accessory options. To complement the native 5° lens, six standard secondary spread lenses can customize the luminaire to produce 8°, 13°, 23°, 43°, 63°, and 5° x 17° (asymmetric) beam angles. The option to add or combine a louver, full glare shield, or half glare shield creates new aesthetic possibilities for designers and architects.



• Simple luminaire positioning
  Rugged, slim-profile mounting bracket allows simple positioning and luminaire rotation through a full 360°. Side locking bolts reliably secure luminaire with a standard wrench.



• Superior color consistency and accuracy
  Optibin, an advanced binning algorithm, sets a new standard for the color consistency and uniformity of LED sources used in manufacturing resulting in color consistency within 2 SDCM.



• Unparalleled light output
  eW Reach Compact Powercore offers unprecedented output and punch for LED-based illumination of large-scale structures and objects.



• Integrates patented Powercore technology that controls power output to luminaires directly from line voltage – rapidly, efficiently, and accurately. The Color Kinetics Data Enabler Pro merges line voltage with control data and delivers them to luminaires over a single standard cable, dramatically simplifying installation and lowering total system cost.



• Universal power input ranges of 100 to 240 VAC (CQC) and 100 to 277 (UL/CE).
