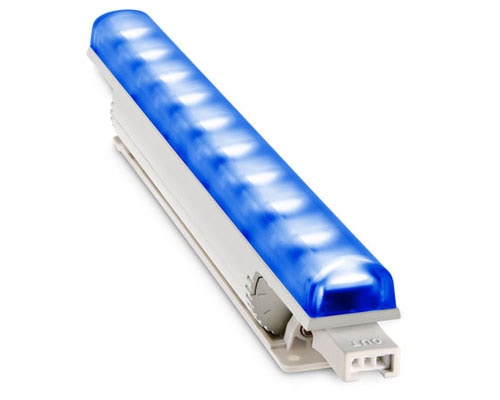

eColor Fuse Powercore

Linear interior LED wall grazing luminaire with solid color light

With narrow and medium beams of intense solid color light, eColor Fuse Powercore is an excellent choice for surface grazing and wall-washing applications. Its ultra-compact form factor permits installation in tight spaces too small to accommodate conventional grazing luminaires with similar light output. Lowers installation, energy, and maintenance costs. Offers environmentally-conscious buyers a green, energy-efficient grazing luminaire with industry-leading quality and quantity of light.

Product Guide

Toggle view

Product Summary and Specification Sheets

Download Product Summary

A summary of all products

Features

High-performance beam quality
Available in narrow 10° x 60° or medium 30° x 60° beam angle. Superior beam quality delivers striation-free light as close as 152 mm (6 in) from luminaire placement. Interlocking connectors for end-to-end installation with no light scalloping between luminaires.

Support for multiple voltages
Accepts power input of 100 to 277 VAC for consistent installation and operation from line voltage in any location around the world.

Simple installation
Contractor-friendly installation allows long product runs. Easy-to-install 1219 mm (4 ft) mounting tracks allow quick project setup in linear applications.

Cost-effective alternative
Long, useful source life and low-maintenance operation provide a cost-effective alternative to traditional grazing luminaires.

Integrates patented Powercore technology
Powercore rapidly, efficiently, and accurately controls power directly from line voltage, eliminating the need for an external power supply, dramatically simplifying installation, and lowering total system cost.

Dimming capability
Patented DIMand technology offers smooth dimming capability with selected commercially available reverse-phase ELV-type dimmers.

Easy mounting and positioning
With end-to-end locking power connectors that can make turns of up to 180°, eColor Fuse Powercore luminaires are easy to position in even the most challenging mounting circumstances. Luminaires rotate in 10° increments through 180° for precise aiming and color mixing. Optional mounting tracks support vertical and overhead positioning. 305 mm (1 ft) and 1.5 m (5 ft) jumper cables can add extra space between luminaires.

Downloads

Documentation

eColor Fuse Powercore Installation Instructions

Product Drawings

eColor Fuse Powercore.pdf

eColor Fuse Powercore.dwg
