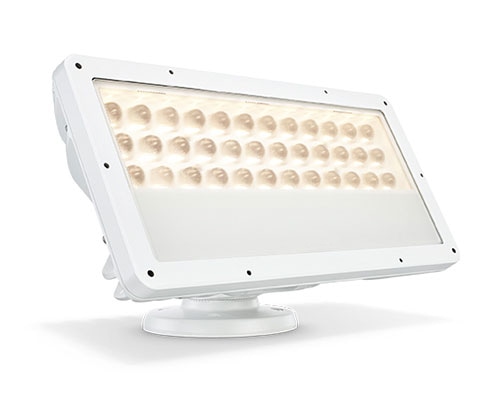

eW Blast Powercore gen4, OptiField

    Exterior customizable OptiField luminaire with single temperature white light

    eW Blast Powercore gen4, OptiField high-performance LED luminaires provide uniform lighting across large surfaces. eW Blast Powercore gen4, OptiField increases application efficiency by directing more light on a specific target and offers a range of accessories that allow for customization, along with the efficiency and cost-effectiveness of Powercore technology in a rugged die-cast aluminium housing.

    Product Summary and Specification Sheets


    • Uniform illumination
      eW Blast Powercore gen4, OptiField delivers a uniformity ratio of less than 4:1 on a 6 m (20 ft) wall with a 1 m (3 ft) setback.

    • Design flexibility
      eW Blast Powercore gen4, OptiField is designed to adapt to its surroundings regardless of the wall height, setback, or spacing of an installation.

    • Meets ASTM B117 standard for > 1,500 hours of corrosion resistance and ANSI C136.31-2010 standard with a 3G vibration rating.

    • The Color Kinetics Data Enabler Pro merges line voltage with control data and delivers them to luminaires over a single standard cable, dramatically simplifying installation and lowering total system cost.

    • Digital Dimming
      Smooth dimming down to 1% with optional Data Enabler Pro and digital control interface. More about dimming »

    • Precise control of light
      Asymmetric optic design provides precise control of light and delivers more illumination with higher uniformity at a lower power than comparable fluorescent asymmetric reflector solutions.

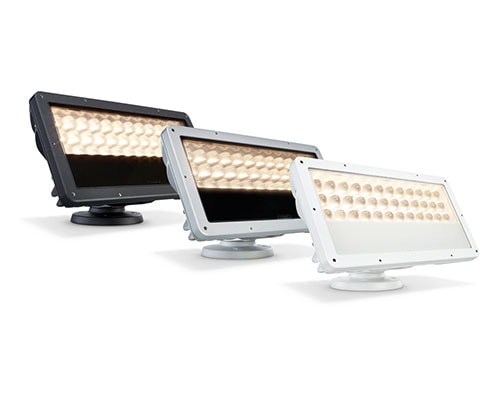

    • Expands customization with a range of new accessory options. Three housing color choices (black, gray, and white) - plus the option to add a trim ring or a half glare shield - create new aesthetic possibilities for designers and architects.

    • Integrates patented Powercore technology that controls power output to luminaires directly from line voltage rapidly, efficiently, and accurately.

    • Universal power input range of 100 to 277 (UL/CE/CQC).
